Wireless temperature sensor

Short Description:

Intelligent wireless temperature measurement device is suitable for high and low voltage from 0.4kV to 110kV, such as circuit breaker contact temperature measurement, busbar temperature measurement, busduct temperature measurement, transformer temperature measurement, cable joint temperature measurement, cable slot temperature measurement, etc. No need to open holes, no wiring, self-organization network, wireless transmission and reception throughout the whole process, up to 252 temperature measurement points can be received. It is also equipped with a fully user-friendly background temperature measurement system software to monitor temperature rise changes in real time, historical temperature data analysis and over-temperature alarms. The products are widely used in technical renovations or new power projects.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Product name:Wireless temperature sensor

Product description

The wireless temperature sensor is used to measure the temperature of the surface or contact of high-voltage charged objects, such as exposed contacts in high-voltage switchgears, busbar connections, outdoor knife switches and operating temperature of transformers, etc. The wireless temperature sensor is composed by temperature sensor, signal conditioning amplifier, logic control circuit, wireless modulation interface, etc. The sensor sends the collected temperature signal to the intelligent wireless temperature measurement device through the wireless network.

Application range

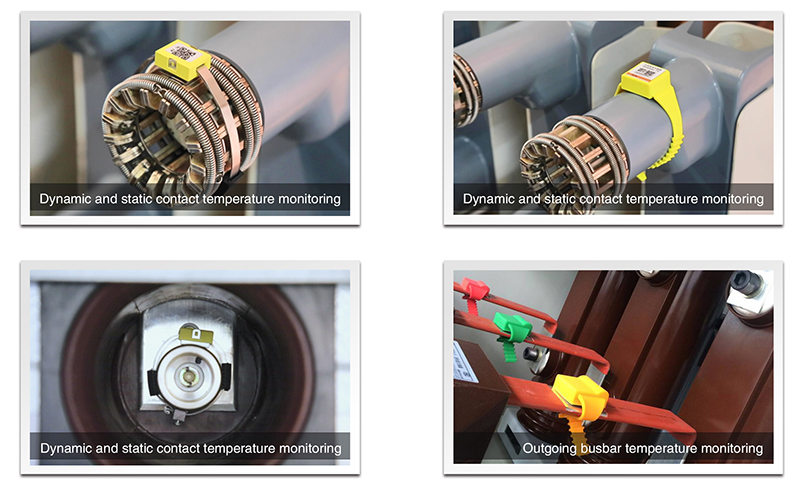

Wireless temperature measurement is suitable for: 110kV, 6-35kV, 0.4kV high, medium and low voltage power systems, high voltage switchgear, low voltage cabinet, ring network cabinet, outdoor transformer, dynamic and static contacts, busbars, busduct, cable lap joints, etc.

Product Type Selection

Product model	WX-03	WX-06	WX-07
Application range	Cable joint in switch cabinet, busduct,moving contact
Temperature measurement range	-40～+200℃
Accuracy	±1℃
Sending frequency	The default value is 1 minute, Adjustable
Wireless transmission distance	300m
Working power supply	Induction electric	Lithium battery	Induction electric
Starting current	4A+	/	5A+
Installation method	Bundled installation
Dimensions	25.5mmx21.5mmx11mm	Main part:38mmx35mmx24mm Strap length：385mm
