Distributed Temperature Sensing (DTS) System
●Combined with DTS optic fiber controller, sensitive part (sensor optic fiber cable).
● Real-time monitoring, accurate location.
●Gathered photoelectric signal monitoring and computer technology as one.
●Widely used to fire detection. -
Optic fiber Linear heat detector controller WT-GL-100
● Fast: monitor and position alarms quickly.
● Distributed: monitor each 0.5m changes along 20km.
● Precise: Sampling interval 0.5m, Temperature resolution ±0.1℃, Temperature accuracy ±1℃, Position accuracy ±0.5m.
● Compatible: using RS232, RS485, RJ45, build-in relay to connect with fire alarm controllers.
● Safe: intrinsic safe by using optical signal.
-
Wireless temperature sensor
Intelligent wireless temperature measurement device is suitable for high and low voltage from 0.4kV to 110kV, such as circuit breaker contact temperature measurement, busbar temperature measurement, busduct temperature measurement, transformer temperature measurement, cable joint temperature measurement, cable slot temperature measurement, etc. No need to open holes, no wiring, self-organization network, wireless transmission and reception throughout the whole process, up to 252 temperature measurement points can be received. It is also equipped with a fully user-friendly background temperature measurement system software to monitor temperature rise changes in real time, historical temperature data analysis and over-temperature alarms. The products are widely used in technical renovations or new power projects.
-
Wireless temperature sensor
Product name:Wireless temperature sensor Product description The wireless temperature sensor is used to measure the temperature of the surface or contact of high-voltage charged objects, such as exposed contacts in high-voltage switchgears, busbar connections, outdoor knife switches and operating temperature of transformers, etc. The wireless temperature sensor is composed by temperature sensor, signal conditioning amplifier, logic control circuit, wireless modulation interface, etc.... -

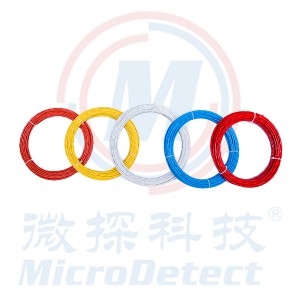

Digital Type Linear Heat Sensing Cable –Conventional Type –UL Approval
● Industrial safety design
● Compatible to any kind of fire alarm system.
● ≤500 Meters/ Set.
● Alarm temperatures: 68℃, 88℃, 105℃, 138℃ .
-
Digital Type Linear Heat Sensing Cable EP(Explosion Proof) Type–UL Approval
● UV resistance and good weather resistance.
● Electrical interface with low power consumption design.
● ≤500 Meters/ Set.
● Alarm temperatures: 68℃, 88℃, 105℃, 138℃.
-
Distributed Temperature Sensing (DTS) System Controller WT-GL-100
● 4 channels, 5km/channel.
● Fast: monitor and position alarms quickly.
● Distributed: monitor each 0.5m changes along 20km.
● Precise: Sampling interval 0.5m, Temperature resolution ±0.1℃, Temperature accuracy ±1℃, Position accuracy ±0.5m.
● Compatible: using RS232, RS485, RJ45, build-in relay to connect with fire alarm controllers.
● Safe: intrinsic safe by using optical signal.
-
Intelligent wireless temperature measurement device
Intelligent wireless temperature measurement device is suitable for high and low voltage from 0.4kV to 110kV, such as circuit breaker contact temperature measurement, busbar temperature measurement, busduct temperature measurement, transformer temperature measurement, cable joint temperature measurement, cable slot temperature measurement, etc. No need to open holes, no wiring, self-organization network, wireless transmission and reception throughout the whole process, up to 252 temperature measurement points can be received. It is also equipped with a fully user-friendly background temperature measurement system software to monitor temperature rise changes in real time, historical temperature data analysis and over-temperature alarms. The products are widely used in technical renovations or new power projects.
-

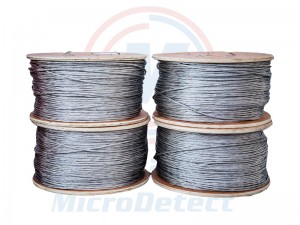

Optic fiber sensor cable WT-GL-101
● Metal armored spiral sheath.
● Work with long term operation at -40℃ ~ +120℃ environment.
● Anti-corrosion, anti-tensile, abrasion resistant.
-
Intelligent AI Online Temperature Monitoring Platform
The main functions are: real time temperature monitoring, alarm reminder of equipment, temperature curve, equipment operation record and so on.
The software’s development technology adopt HTML5, it can be running on Chrom, no need to other carrier.
-
Intelligent Optical Fiber Temperature Measuring Device
Fiber optical with the characters of electric insulation, intrinsic safety and immune to electromagnetic interference.
-
Fiber Bragg Grating Type Linear Heat Detector
Grating fiber has the advantages of small volume, low welding loss, full compatibility with optical fiber and embedding intelligent materials.
