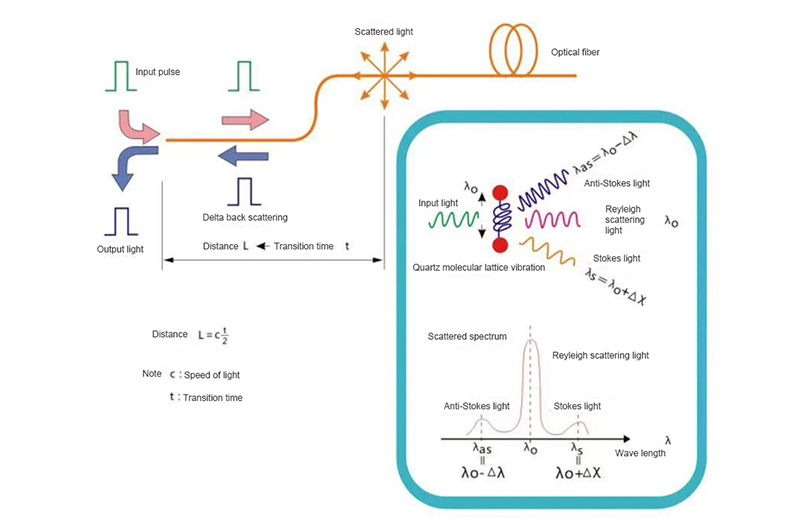

The principle of DTS system



It utilizes 2 characters of light:

Raman effect :An optical laser pulse sent through the fiber results in some scattered light reflecting, temperature affects the wavelength of reflection.

OTDR:The position(each meter) of the temperature reading is determined by measuring the arrival timing of the returning light pulse similar to a radar echo.
