Application on cable tray, cable tunnel, cable trench

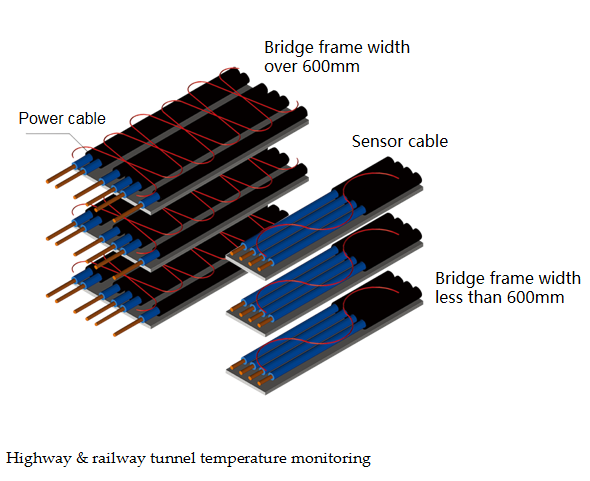

Be laid with sine-wave contact type, sensor cable should be fixed with special fixture to avoid mechanical damage caused by stress. The installation method is shown in the figure. The length calculation when sensor cable is laid with sine-wave contact is as following formula：length=the width of the bracket*multiplier coefficient, the multiplier coefficient is according to the following figure.
The calculate of fixture： fixture quatity = half sine-wave quatity*2+1.
| Bracket width(m) | Multiplier coefficient |
| 1.2 | 1.75 |
| 0.9 | 1.50 |
| 0.6 | 1.25 |
| 0.5 | 1.15 |
| 0.4 | 1.10 |
